MCR10 Series Hydraulic Travel Motor
Series Of Pictures
The MCR10 Hydraulic Piston Motor converts hydraulic oil pressure into powerful rotary motion through a radial piston structure. This design is especially suitable for applications requiring high torque at low speed, such as wheel drive, track drive, rotary drive, travel drive, and heavy-duty equipment movement.
Compared with ordinary high-speed hydraulic motors, the MCR10 High Flow Radial Piston Hydraulic Oil Motor is better suited for direct-drive systems where smooth startup, strong traction, and low-speed stability are important. The motor can be matched with hydraulic brakes, control valves, and customized mounting structures according to different machine requirements.
As a Multipurpose Hydraulic Motor, the MCR10 series is widely used in mining machinery and construction equipment. It is a practical solution for OEM equipment manufacturers, maintenance companies, hydraulic system integrators, and users looking for China Customized hydraulic drive solutions.

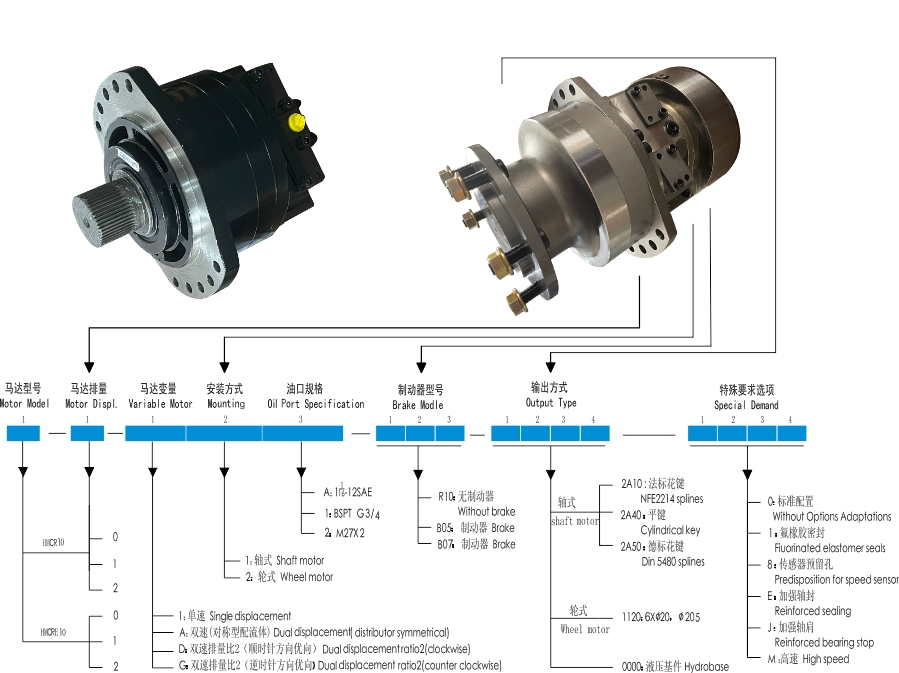

Configuration Model/Order Number
MCR10 Series Hydraulic Travel Motor
Copy to clipboard
↓Configured Parameters
No parameters configured yet
You can still submit an inquiry now. To copy the full model number or download a sample, complete all configuration options.
Inquiry Now
Sample Download
Series Advantages
Product Advantages
1. High Torque Output
With rated torque from 2560 to 4400 N·m and maximum torque up to 5430 N·m, the MCR10 hydraulic DRIVE MOTOR is suitable for heavy-duty travel and rotary drive systems.
2. Low-Speed Smooth Operation
The radial piston structure supports smooth running at low speed, which helps improve machine stability during starting, stopping, positioning, and slow movement.
3. Wide Displacement Range
The MCR10 series offers displacement from 780 to 1340 ml/r, allowing users to select the proper model according to speed, torque, hydraulic flow, and load requirements.
4. High Pressure Capability
With 25 MPa rated pressure and 31.5 MPa maximum pressure, this Hydraulic Piston Motor can work in demanding hydraulic systems.
5. Suitable for Travel and Slew Drive
The MCR10 can be used as a Hydraulic Travel Motor, Travel Motor, Slew Motor, or hydraulic Slew Motor, depending on the equipment structure and hydraulic circuit.
6. Modular and Customizable Design
The motor can be configured with different valves, brakes, and mounting options, making it suitable for customized hydraulic drive systems.
7. Reliable for Harsh Working Conditions
The product is designed for demanding environments such as mining machinery, road headers, coal mine drills, and construction machinery.
With rated torque from 2560 to 4400 N·m and maximum torque up to 5430 N·m, the MCR10 hydraulic DRIVE MOTOR is suitable for heavy-duty travel and rotary drive systems.
2. Low-Speed Smooth Operation
The radial piston structure supports smooth running at low speed, which helps improve machine stability during starting, stopping, positioning, and slow movement.
3. Wide Displacement Range
The MCR10 series offers displacement from 780 to 1340 ml/r, allowing users to select the proper model according to speed, torque, hydraulic flow, and load requirements.
4. High Pressure Capability
With 25 MPa rated pressure and 31.5 MPa maximum pressure, this Hydraulic Piston Motor can work in demanding hydraulic systems.
5. Suitable for Travel and Slew Drive
The MCR10 can be used as a Hydraulic Travel Motor, Travel Motor, Slew Motor, or hydraulic Slew Motor, depending on the equipment structure and hydraulic circuit.
6. Modular and Customizable Design
The motor can be configured with different valves, brakes, and mounting options, making it suitable for customized hydraulic drive systems.
7. Reliable for Harsh Working Conditions
The product is designed for demanding environments such as mining machinery, road headers, coal mine drills, and construction machinery.
Technical Specifications
| Item | MCR10 Hydraulic Drive Motor Specification |
|---|---|
| Product Name | MCR10 Hydraulic Drive Motor |
| Product Type | Hydraulic Piston Motor / Radial Piston Hydromotor |
| Motor Type | Low-speed high-torque radial piston motor |
| Model Series | HMCR10 / HMCRE10 |
| Displacement Range | 780–1340 ml/r |
| Rated Pressure | 25 MPa |
| Maximum Pressure | 31.5 MPa |
| Theoretical Torque at 10 MPa | 1240–2130 N·m |
| Rated Torque | 2560–4400 N·m |
| Maximum Torque | 3160–5430 N·m |
| Rated Speed | 80–125 r/min |
| Speed Range | 0–215 r/min, depending on displacement |
| Maximum Power | 44–50 kW |
| Optional Configuration | Valves, brakes, customized mounting and drive options |
| Main Applications | Mining machinery, road headers, coal mine drills, skid steer loaders, construction machinery, heavy-duty handling vehicles |
| Model | Displacement | Theoretical Torque at 10 MPa | Rated Speed | Rated Torque | Max Torque | Speed Range | Max Power |
|---|---|---|---|---|---|---|---|
| HMCR10-780 | 780 ml/r | 1240 N·m | 125 r/min | 2560 N·m | 3160 N·m | 0–215 r/min | 44 kW |
| HMCR10-860 | 860 ml/r | 1367 N·m | 100 r/min | 2820 N·m | 3480 N·m | 0–195 r/min | 44 kW |
| HMCR10-940 | 940 ml/r | 1494 N·m | 100 r/min | 3090 N·m | 3810 N·m | 0–180 r/min | 44 kW |
| HMCRE10-1120 | 1120 ml/r | 1780 N·m | 100 r/min | 3680 N·m | 4540 N·m | 0–150 r/min | 50 kW |
| HMCRE10-1250 | 1250 ml/r | 1987 N·m | 80 r/min | 4110 N·m | 5060 N·m | 0–135 r/min | 50 kW |
| HMCRE10-1340 | 1340 ml/r | 2130 N·m | 80 r/min | 4400 N·m | 5430 N·m | 0–125 r/min | 50 kW |
Application Industries
Application Scenarios
Mining Machinery
The MCR10 Hydromotor can be used in coal winning machines, road headers, coal mine drills, and heavy-duty handling vehicles where high torque and reliable operation are required.
Construction Machinery
This hydraulic DRIVE MOTOR is suitable for skid steer loaders, breaking machines, compact construction equipment, and other machines requiring strong drive power.
Hydraulic Travel Drive Systems
As a Hydraulic Travel Motor, the MCR10 can be applied in wheel drive and track drive systems where high traction, low speed, and smooth movement are important.
Slew Drive Systems
The MCR10 can work as a Slew Motor or hydraulic Slew Motor for rotary mechanisms, drilling equipment, lifting equipment, and turntable systems.
Heavy-Duty Handling Equipment
With high torque output and a strong radial piston design, the MCR10 motor is suitable for heavy-duty handling vehicles and industrial transport equipment.
Customized Hydraulic Systems
For Motor Manufacturers, Motor Suppliers, and hydraulic system integrators, the MCR10 can be supplied as a China Customized hydraulic motor solution for special equipment and OEM replacement projects.
