MCR03 Series Hydraulic Multipurpose Travel Motor
MCR03 Series Hydraulic Multipurpose Travel Motor
Series Of Pictures
The MCR03 Hydraulic Drive Motor is a low-speed high-torque Hydraulic Piston Motor with radial piston structure. With 160–280 ml/r displacement, 25 MPa rated pressure, 31.5 MPa maximum pressure, and torque up to 1130 N·m, it is suitable for Hydraulic Travel Motor, Travel Motor, Slew Motor, hydraulic Slew Motor, construction machinery, mining machinery, drilling machines, and customized hydraulic drive systems.

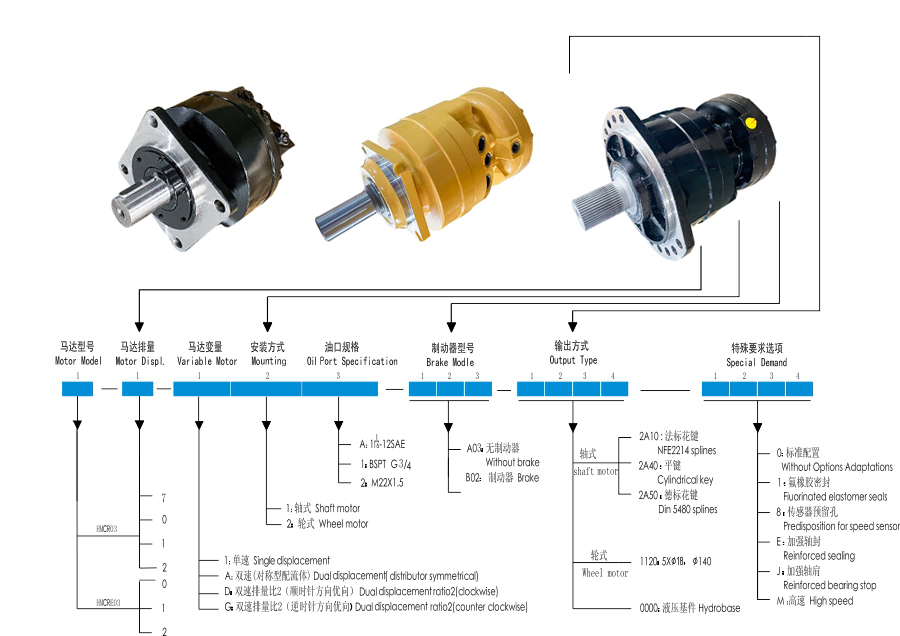

Configuration Model/Order Number
MCR03 Series Hydraulic Multipurpose Travel Motor
Copy to clipboard
↓Configured Parameters
No parameters configured yet
You can still submit an inquiry now. To copy the full model number or download a sample, complete all configuration options.
Inquiry Now
Sample Download
Series Advantages
Product Advantages
1. Low-Speed High-Torque Performance
The MCR03 radial piston motor delivers strong torque at low speed, making it ideal for drive systems where heavy load movement and smooth startup are important.
2. Compact Radial Piston Design
The compact structure makes this Hydromotor suitable for machines with limited installation space, including compact loaders, drilling machines, and mobile equipment.
3. Stable Operation at Very Low Speed
The radial piston design provides smooth running even at low speed, helping improve machine control and reduce vibration during operation.
4. High Pressure Capability
With rated pressure of 25 MPa and maximum pressure up to 31.5 MPa, the MCR03 Hydraulic Piston Motor is suitable for demanding hydraulic drive systems.
5. Multiple Displacement Options
The MCR03 series offers displacement options from 160 ml/r to 280 ml/r, allowing users to select the right model according to torque, speed, and hydraulic flow requirements.
6. Customizable Configuration
As a China Customized hydraulic motor solution, the MCR03 can be configured with brakes, valves, output shafts, and double-displacement options for different equipment needs.
7. Suitable for Travel and Slew Drive
The motor can be used as a Hydraulic Travel Motor, Travel Motor, Slew Motor, or hydraulic Slew Motor, depending on machine structure and hydraulic circuit design.
8. Replacement-Friendly Design
The MCR03 motor is commonly used as a replacement-type radial piston motor for compact drive systems in construction and mining machinery.
The MCR03 radial piston motor delivers strong torque at low speed, making it ideal for drive systems where heavy load movement and smooth startup are important.
2. Compact Radial Piston Design
The compact structure makes this Hydromotor suitable for machines with limited installation space, including compact loaders, drilling machines, and mobile equipment.
3. Stable Operation at Very Low Speed
The radial piston design provides smooth running even at low speed, helping improve machine control and reduce vibration during operation.
4. High Pressure Capability
With rated pressure of 25 MPa and maximum pressure up to 31.5 MPa, the MCR03 Hydraulic Piston Motor is suitable for demanding hydraulic drive systems.
5. Multiple Displacement Options
The MCR03 series offers displacement options from 160 ml/r to 280 ml/r, allowing users to select the right model according to torque, speed, and hydraulic flow requirements.
6. Customizable Configuration
As a China Customized hydraulic motor solution, the MCR03 can be configured with brakes, valves, output shafts, and double-displacement options for different equipment needs.
7. Suitable for Travel and Slew Drive
The motor can be used as a Hydraulic Travel Motor, Travel Motor, Slew Motor, or hydraulic Slew Motor, depending on machine structure and hydraulic circuit design.
8. Replacement-Friendly Design
The MCR03 motor is commonly used as a replacement-type radial piston motor for compact drive systems in construction and mining machinery.
Technical Specifications
| Item | MCR03 Hydraulic Drive Motor Specification |
|---|---|
| Product Name | MCR03 Hydraulic Drive Motor |
| Product Type | Hydraulic Piston Motor / Radial Piston Hydromotor |
| Motor Type | Low-speed high-torque radial piston motor |
| Common Models | MCR03-160, MCR03-225, MCR03-255, MCR03-280 |
| Displacement Range | 160–280 ml/r |
| Rated Pressure | 25 MPa |
| Max Pressure | 31.5 MPa |
| Theoretical Torque at 10 MPa | 254–445 N·m |
| Rated Torque | 530–920 N·m |
| Max Torque | 650–1130 N·m |
| Rated Speed | 125–250 r/min, depending on displacement |
| Speed Range | 0–670 r/min, depending on displacement |
| Max Power | 18 kW |
| Optional Configuration | Valves, brakes, wheel output shaft, double displacement options |
| Main Applications | Skid steer loaders, drilling machines, road headers, mining machinery, construction machinery, travel drive systems, slew drive systems |
| Model | Displacement | Theoretical Torque at 10 MPa | Rated Pressure | Rated Torque | Max Pressure | Max Torque | Speed Range |
|---|---|---|---|---|---|---|---|
| MCR03-160 | 160 ml/r | 254 N·m | 25 MPa | 530 N·m | 31.5 MPa | 650 N·m | 0–670 r/min |
| MCR03-225 | 225 ml/r | 357 N·m | 25 MPa | 740 N·m | 31.5 MPa | 910 N·m | 0–475 r/min |
| MCR03-255 | 255 ml/r | 405 N·m | 25 MPa | 830 N·m | 31.5 MPa | 1030 N·m | 0–420 r/min |
| MCR03-280 | 280 ml/r | 445 N·m | 25 MPa | 920 N·m | 31.5 MPa | 1130 N·m | 0–385 r/min |
Application Industries
Application Scenarios
Construction Machinery

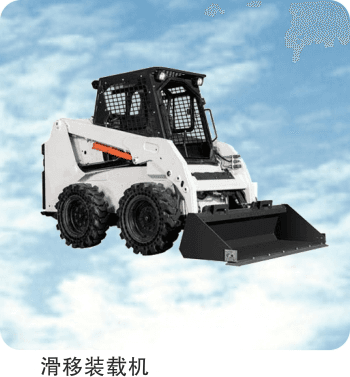

The MCR03 hydraulic DRIVE MOTOR can be used in skid steer loaders, mini loaders, compact construction machines, cutting machines, and small road headers.
Hydraulic Travel Drive Systems
As a Hydraulic Travel Motor, the MCR03 motor is suitable for wheel drive and track drive systems where high torque and stable low-speed control are required.
Slew Drive Systems
The MCR03 can also be applied as a Slew Motor or hydraulic Slew Motor in rotary equipment, small cranes, drilling rigs, and rotating work platforms.
Mining Machinery
This Hydraulic Piston Motor can be used in road headers, scrapers, coal mine drilling machines, heavy-duty handling vehicles, and underground mining equipment.
Drilling Equipment
The MCR03 radial piston Hydromotor is suitable for down-the-hole drills, rotary drilling machines, boring machines, and other equipment requiring high torque rotation.
Customized Hydraulic Systems
For OEMs and equipment repair companies, the MCR03 series can be supplied as a Multipurpose Hydraulic Motor for customized hydraulic power transmission systems.
