HMS02 Series Piston Travel Motor
Series Of Pictures
The HMS02 series is a high-performance radial piston hydraulic motor. This multipurpose hydraulic motor offers a compact design and high power density. It serves as a precision-engineered poclain motor alternative for industrial and mobile machinery. The HMS02 features modular construction, allowing for various mounting and braking options. As a leading motor factory, we provide China customized solutions to meet specific torque and speed requirements.

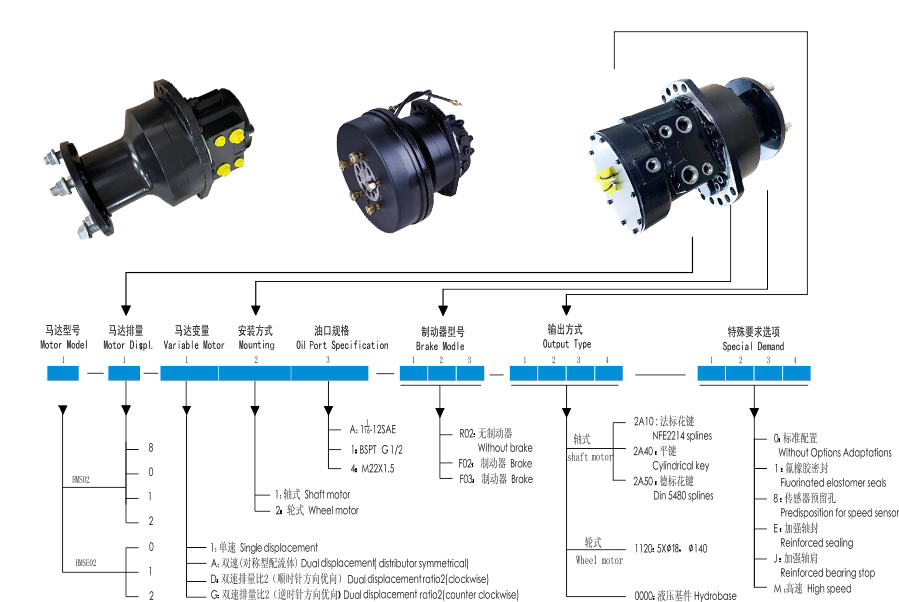

Configuration Model/Order Number
HMS02 Series Piston Travel Motor
Copy to clipboard
↓Configured Parameters
No parameters configured yet
You can still submit an inquiry now. To copy the full model number or download a sample, complete all configuration options.
Inquiry Now
Sample Download
Series Advantages
Product Advantages
Compact & Lightweight: Weighing only 21–31 kg, it fits easily into tight spaces.
High Torque Output: Delivers up to 1600 N.m maximum torque for heavy loads.
Modular Mounting: Available in shaft motor and wheel motor configurations.
Flexible Braking: Options include R02 (no brake) and F02/F03 integrated mechanical brakes.
Enhanced Durability: Supports reinforced seals and bearing stops for harsh environments.
Precision Monitoring: Built-in predisposition for speed sensors.
High Torque Output: Delivers up to 1600 N.m maximum torque for heavy loads.
Modular Mounting: Available in shaft motor and wheel motor configurations.
Flexible Braking: Options include R02 (no brake) and F02/F03 integrated mechanical brakes.
Enhanced Durability: Supports reinforced seals and bearing stops for harsh environments.
Precision Monitoring: Built-in predisposition for speed sensors.

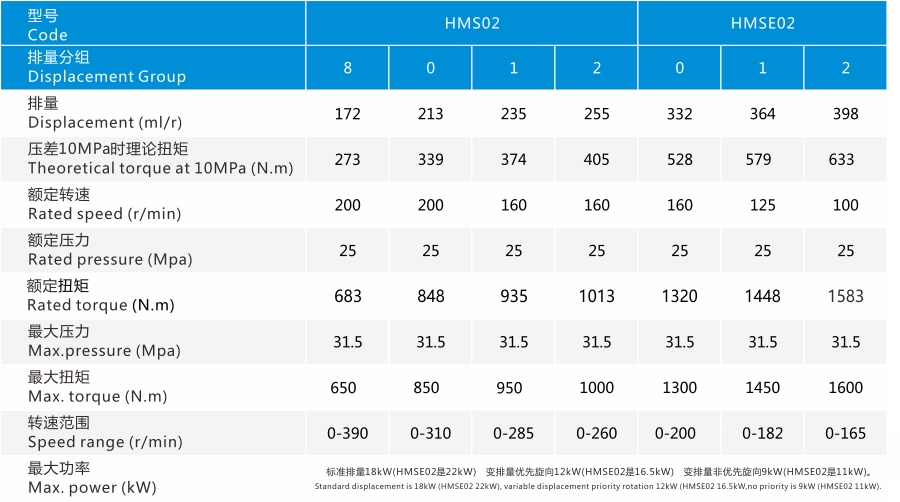

Technical Specifications
| Technical Data | HMS02 Range | HMSE02 Range |
| Displacement (ml/r) | 172 — 255 | 332 — 398 |
| Rated Pressure (MPa) | 25 | 25 |
| Max. Pressure (MPa) | 31.5 | 31.5 |
| Rated Torque (N.m) | 683 — 1013 | 1320 — 1583 |
| Max. Speed (r/min) | 200 — 390 | 165 — 200 |
| Max. Power (kW) | 18 | 22 |
| Weight (kg) | 21 | 31 |

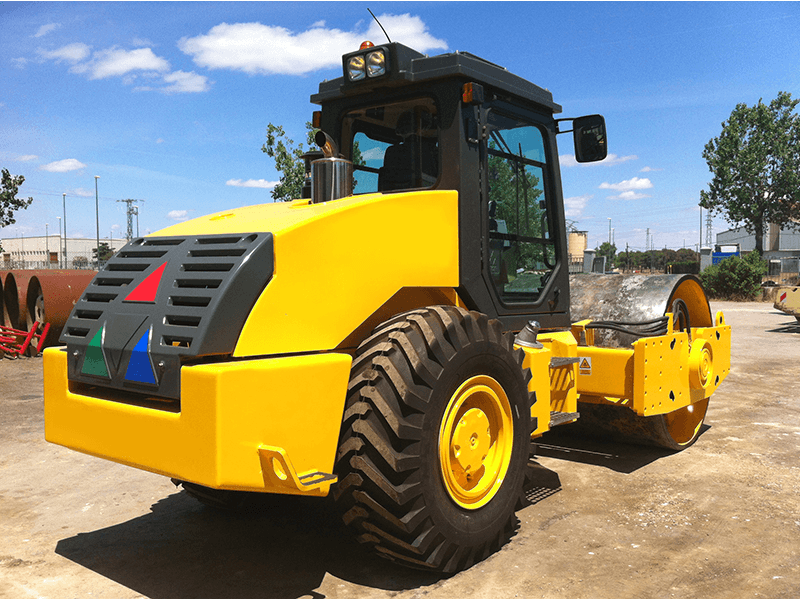

Application Industries
Application Scenarios
Construction: Small excavators, skid steers, and mini-loaders.
Mining: Compact drilling rigs and underground transport.
Agricultural: Seeders, sprayers, and harvesting attachments.
Industrial Drives: Conveyor systems and heavy-duty rotary actuators.
Slew Systems: Functions as a reliable hydraulic slew motor for cranes and winches.
