MCR05 Series Hydraulic Travel Motor
Series Of Pictures
The MCR05 Hydraulic Piston Motor converts hydraulic oil pressure into rotary mechanical power through a radial piston structure. This design allows the motor to generate high torque at low speed, making it suitable for equipment that requires strong starting force, stable movement, and smooth control under heavy load.
Compared with ordinary high-speed hydraulic motors, the MCR05 High Flow Radial Piston Hydraulic Oil Motor is better suited for direct-drive applications. It can be used for wheel drive, track drive, tool drive, rotary drive, and auxiliary hydraulic drive systems. Its 380–820 ml/r displacement range allows users to select a suitable model according to torque, speed, machine load, and hydraulic flow requirements.
The MCR05 motor can also be supplied as a China Customized hydraulic motor solution for OEM machinery, equipment maintenance, and replacement projects. The cast iron structure supports durability in harsh environments such as construction sites, mining operations, and heavy-duty mobile machinery.

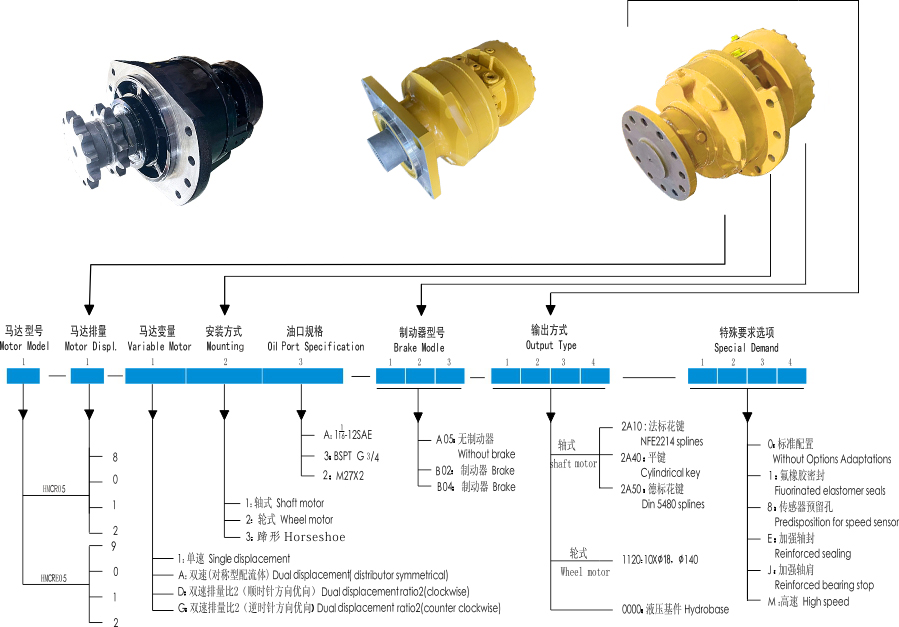

Configuration Model/Order Number
MCR05 Series Hydraulic Travel Motor
Copy to clipboard
↓Configured Parameters
No parameters configured yet
You can still submit an inquiry now. To copy the full model number or download a sample, complete all configuration options.
Inquiry Now
Sample Download
Series Advantages
Product Advantages
1. High Torque at Low Speed
The MCR05 hydraulic DRIVE MOTOR is designed for low-speed, high-torque operation. With rated torque from 1510 to 3225 N·m, it is suitable for machines that need strong traction and smooth startup.
2. Radial Piston Hydromotor Design
The radial piston structure provides stable output, strong load capacity, and smooth rotation, especially in low-speed operating conditions.
3. Wide Displacement Range
The displacement range of 380–820 ml/r gives the MCR05 motor flexibility for different hydraulic drive requirements, from compact mobile machinery to heavier travel systems.
4. High Pressure Capability
With pressure up to 45 MPa, this Hydraulic Piston Motor is suitable for demanding hydraulic systems where strong pressure resistance is required.
5. Cast Iron Construction
The cast iron body improves wear resistance, strength, and long-term durability, making the motor suitable for construction machinery and mining machinery.
6. Suitable for Travel and Slew Functions
The MCR05 can be used as a Hydraulic Travel Motor, Travel Motor, Slew Motor, or hydraulic Slew Motor, depending on the machine structure and hydraulic system design.
7. Customizable Options
As a Multipurpose Hydraulic Motor, the MCR05 can support customized paint, configuration, installation matching, and application-specific hydraulic solutions.
8. Replacement-Friendly Design
The MCR05 series is suitable for replacement, maintenance, and OEM matching in skid steer loaders, road headers, and other mobile hydraulic equipment.
The MCR05 hydraulic DRIVE MOTOR is designed for low-speed, high-torque operation. With rated torque from 1510 to 3225 N·m, it is suitable for machines that need strong traction and smooth startup.
2. Radial Piston Hydromotor Design
The radial piston structure provides stable output, strong load capacity, and smooth rotation, especially in low-speed operating conditions.
3. Wide Displacement Range
The displacement range of 380–820 ml/r gives the MCR05 motor flexibility for different hydraulic drive requirements, from compact mobile machinery to heavier travel systems.
4. High Pressure Capability
With pressure up to 45 MPa, this Hydraulic Piston Motor is suitable for demanding hydraulic systems where strong pressure resistance is required.
5. Cast Iron Construction
The cast iron body improves wear resistance, strength, and long-term durability, making the motor suitable for construction machinery and mining machinery.
6. Suitable for Travel and Slew Functions
The MCR05 can be used as a Hydraulic Travel Motor, Travel Motor, Slew Motor, or hydraulic Slew Motor, depending on the machine structure and hydraulic system design.
7. Customizable Options
As a Multipurpose Hydraulic Motor, the MCR05 can support customized paint, configuration, installation matching, and application-specific hydraulic solutions.
8. Replacement-Friendly Design
The MCR05 series is suitable for replacement, maintenance, and OEM matching in skid steer loaders, road headers, and other mobile hydraulic equipment.

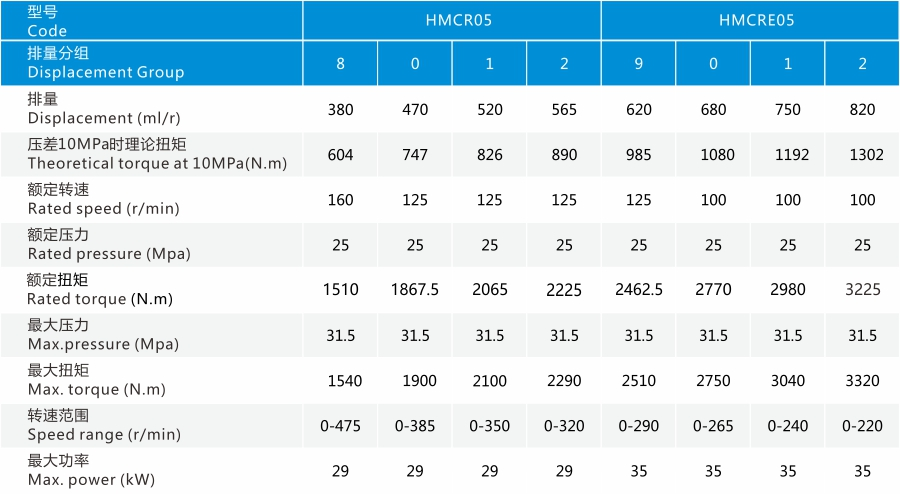

Technical Specifications
| Item | MCR05 Hydraulic Drive Motor Specification |
|---|---|
| Product Name | MCR05 Hydraulic Drive Motor |
| Product Type | Hydraulic Travel Hydromotor |
| Motor Type | Low-speed high-torque radial piston motor |
| Displacement Range | 380–820 ml/r |
| Pressure | 45 MPa |
| Speed Range | 0–220 r/min |
| Rated Torque | 1510–3225 N·m |
| Output Power | 18–22 kW |
| Weight | 60 kg |
| Material | Cast iron |
| Paint | Customized |
| Warranty Time | 12 months |
| Delivery Time | 7–15 days |
| Packing Details | Standard wooden case |
| Main Applications | Skid steer loader, road header, construction machinery, mining machinery, hydraulic travel drive, hydraulic slew drive |
Application Industries
Application Scenarios
Skid Steer Loaders
The MCR05 Hydraulic Travel Motor can be used in skid steer loaders where strong traction, compact structure, and stable travel performance are required.
Road Headers
For road headers and tunneling machinery, the MCR05 Hydraulic Piston Motor provides strong torque output for demanding underground and mining applications.
Construction Machinery
This hydraulic DRIVE MOTOR is suitable for compact loaders, drilling machines, road machinery, cutting equipment, and other construction machines.
Mining Machinery
The MCR05 radial piston Hydromotor can be used in mining machines that require high torque, low speed, and reliable operation under heavy load.
Slew Drive Systems
The motor can be applied as a Slew Motor or hydraulic Slew Motor for rotary platforms, small cranes, drilling equipment, and other rotating mechanisms.
Customized Hydraulic Systems
For OEM manufacturers, repair companies, and hydraulic system integrators, the MCR05 can be used as a China Customized hydraulic motor solution for special machinery and hydraulic power transmission systems.
