HMS05 Series Hydraulic Travel Motor

Series Of Pictures

The HMS05 series is a high-performance radial piston hydraulic motor. This multipurpose hydraulic motor features a modular design and high efficiency. It serves as a reliable poclain motor replacement for various heavy-duty applications. The compact structure includes an integrated mechanical brake option. It delivers smooth performance at low speeds with high output torque. Our motor factory provides China customized solutions to meet specific installation needs.

‌
‌
‌
‌
‌

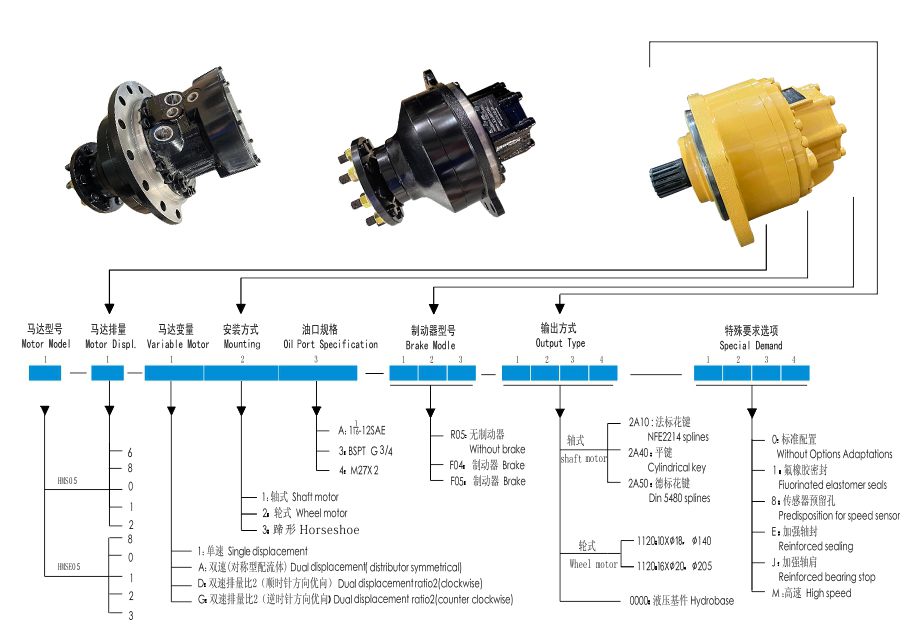

Configuration Model/Order Number

HMS05 Series Hydraulic Travel Motor

Copy to clipboard

↓Configured Parameters

No parameters configured yet

You can still submit an inquiry now. To copy the full model number or download a sample, complete all configuration options.

Inquiry Now

Sample Download

Series Advantages

Product Advantages

High Power Density: Compact size with high torque output.

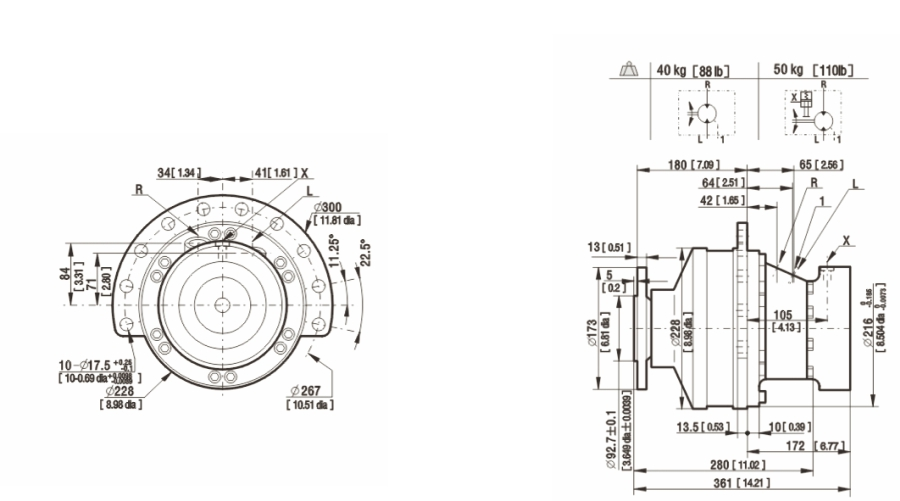

Versatile Mounting: Supports shaft motor, wheel motor, and horseshoe mounting.

Integrated Braking: Optional R05, F04, or F05 mechanical brakes available.

Dual Displacement: Supports symmetrical and asymmetrical dual displacement control.

Durable Sealing: Optional fluorinated elastomer and reinforced seals for harsh environments.

Precision Control: Predisposition for speed sensors ensures accurate monitoring

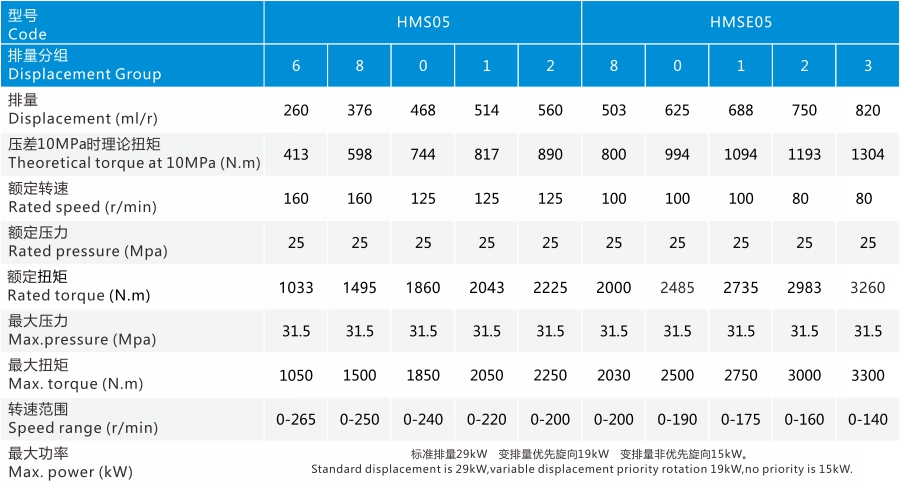

Technical Specifications

Parameters	Value Range (HMS05 - HMSE05)
Displacement	260 ml/r - 820 ml/r
Rated Pressure	25 MPa
Max. Pressure	31.5 MPa
Max. Torque	Up to 3300 N.m
Rated Speed	80 r/min - 160 r/min
Max. Power	Up to 29 kW
Weight	40 kg - 50 kg

Application Industries

Application Scenarios

Construction Machinery: Compact excavators, skid steer loaders, and road rollers. Mining Equipment: Drilling rigs and heavy-duty transport vehicles. Agricultural Machinery: Harvesters and specialized sprayers. Marine & Offshore: Slew drives for cranes and winches (hydraulic slew motor). Material Handling: Forklifts and heavy-duty drive systems.
