HMS05 Series Hydraulic Travel Motor
سلسلة من الصور
The HMS05 series is a high-performance radial piston hydraulic motor. This multipurpose hydraulic motor features a modular design and high efficiency. It serves as a reliable poclain motor replacement for various heavy-duty applications. The compact structure includes an integrated mechanical brake option. It delivers smooth performance at low speeds with high output torque. Our motor factory provides China customized solutions to meet specific installation needs.
رقم طراز التكوين/رقم الطلب
HMS05 Series Hydraulic Travel Motor
انسخ إلى الحافظة
↓المعلمات المُهيأة
لم يتم تكوين أي معلمات بعد
يمكنك إرسال استفسار الآن. لنسخ رقم الطراز الكامل أو تنزيل عينة، أكمل جميع خيارات التكوين.
استفسر الآن
تنزيل عينة
مزايا السلسلة
Product Advantages
High Power Density: Compact size with high torque output.
Versatile Mounting: Supports shaft motor, wheel motor, and horseshoe mounting.
Integrated Braking: Optional R05, F04, or F05 mechanical brakes available.
Dual Displacement: Supports symmetrical and asymmetrical dual displacement control.
Durable Sealing: Optional fluorinated elastomer and reinforced seals for harsh environments.
Precision Control: Predisposition for speed sensors ensures accurate monitoring
Versatile Mounting: Supports shaft motor, wheel motor, and horseshoe mounting.
Integrated Braking: Optional R05, F04, or F05 mechanical brakes available.
Dual Displacement: Supports symmetrical and asymmetrical dual displacement control.
Durable Sealing: Optional fluorinated elastomer and reinforced seals for harsh environments.
Precision Control: Predisposition for speed sensors ensures accurate monitoring
المواصفات الفنية
| Parameters | Value Range (HMS05 - HMSE05) |
| Displacement | 260 ml/r - 820 ml/r |
| Rated Pressure | 25 MPa |
| Max. Pressure | 31.5 MPa |
| Max. Torque | Up to 3300 N.m |
| Rated Speed | 80 r/min - 160 r/min |
| Max. Power | Up to 29 kW |
| Weight | 40 kg - 50 kg |
الصناعات التطبيقية
Application Scenarios
Construction Machinery: Compact excavators, skid steer loaders, and road rollers.

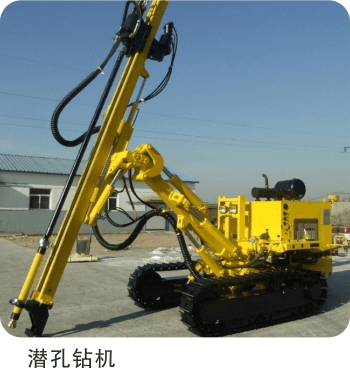

Mining Equipment: Drilling rigs and heavy-duty transport vehicles.
Agricultural Machinery: Harvesters and specialized sprayers.
Marine & Offshore: Slew drives for cranes and winches (hydraulic slew motor).
Material Handling: Forklifts and heavy-duty drive systems.
