HMS08 Series Hydraulic Piston Travel Motor
Series Of Pictures
The HMS08 series is a robust hydraulic drive motor built for heavy machinery. This high flow radial piston hydraulic oil motor is a direct replacement for the Poclain MS08. Our motor factory offers China customized designs for versatile mounting. It works efficiently as a travel motor or a slew motor. The modular design allows for smooth operation in high-pressure environments. It is a reliable hydromotor choice for global motor suppliers.

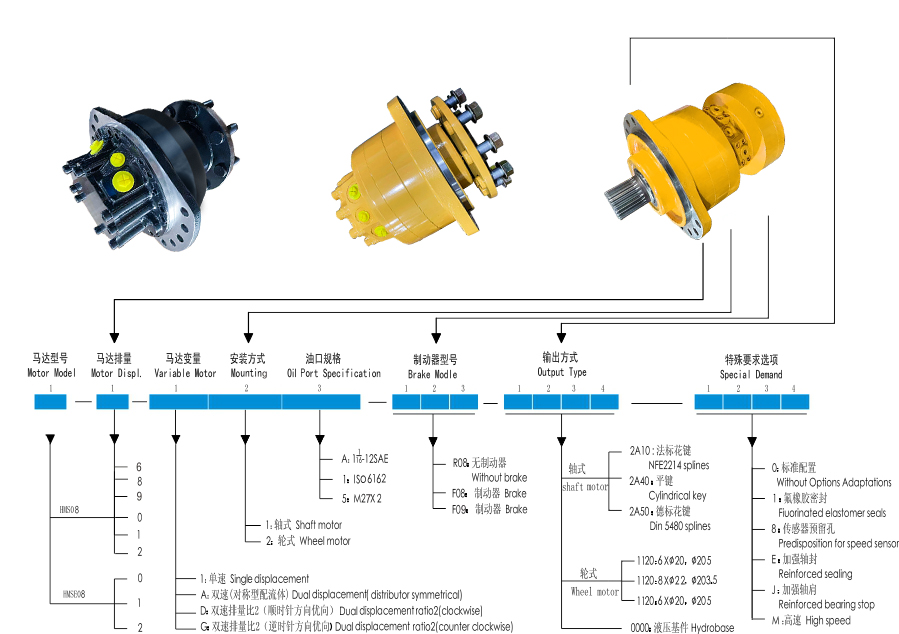

Configuration Model/Order Number
HMS08 Series Hydraulic Piston Travel Motor
Copy to clipboard
↓Configured Parameters
No parameters configured yet
You can still submit an inquiry now. To copy the full model number or download a sample, complete all configuration options.
Inquiry Now
Sample Download
Series Advantages
Product Advantages
High Power Output: Reaches up to 41 kW for demanding tasks.
Flexible Mounting: Supports both shaft motor and wheel motor configurations.
Precision Control: Offers multiple displacement groups for accurate speed management.
Durable Design: Radial piston structure handles high pressure and peak torque.
Customizable Features: Options include various oil ports, brakes, and splines.
Flexible Mounting: Supports both shaft motor and wheel motor configurations.
Precision Control: Offers multiple displacement groups for accurate speed management.
Durable Design: Radial piston structure handles high pressure and peak torque.
Customizable Features: Options include various oil ports, brakes, and splines.

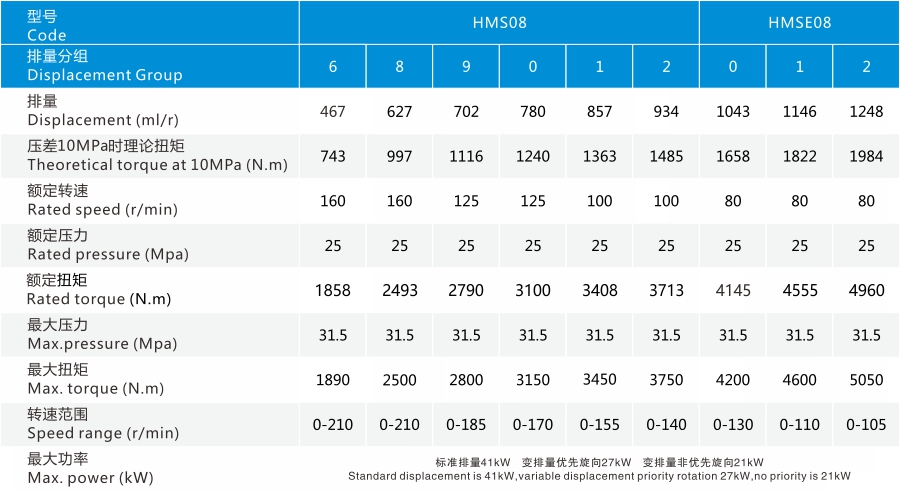

Technical Specifications
| Feature | Technical Specification |
| Model Code | HMS08 / HMSE08 |
| Displacement Range | 467 ml/r to 1248 ml/r |
| Rated Pressure | 25 MPa |
| Max. Pressure | 31.5 MPa |
| Max. Torque | Up to 5050 N.m |
| Max. Power | 41 kW |
| Speed Range | 0 to 210 r/min |
Application Industries

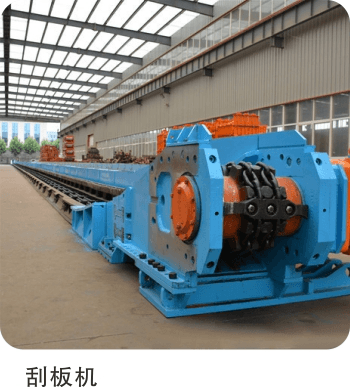

Application Scenarios
Construction: Road rollers, mucking loaders, and excavating loaders.
Mining: Roadheaders, scrapers, and coal drills.
Forestry: Forestry harvesters and forest loaders.
Special Vehicles: Fire trucks and transport vehicles.
Agriculture: High-flow sprayers.
