Have you ever wondered how heavy machinery can lift tons of material effortlessly? The answer lies in two essential systems: pneumatic and hydraulic cylinders. Both of these systems use pressure to create motion but operate differently, offering distinct advantages based on their application.

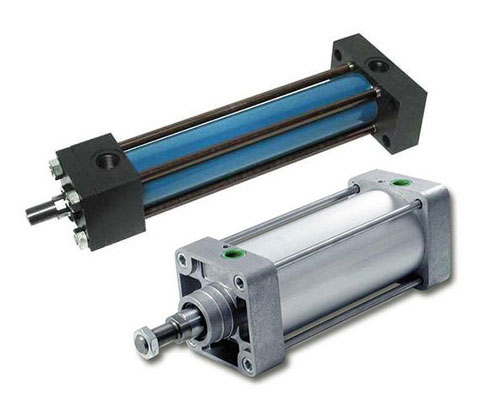

In this article, we’ll explore the key differences between pneumatic and hydraulic cylinders. You'll learn about the mechanisms, force production, speed, precision, and efficiency of both systems. Understanding these differences will help you choose the right system for your specific needs, whether you’re working in manufacturing, construction, or any other industry that uses heavy machinery.
A pneumatic cylinder is powered by compressed air. In this system, air is pressurized within a cylinder, causing the piston inside to move, which in turn performs mechanical tasks. Pneumatic cylinders are typically used in applications where moderate force is required, but speed and flexibility are key.
These cylinders are relatively simple, inexpensive, and easy to maintain. Because air is compressible, pneumatic cylinders can respond quickly, making them ideal for light-duty tasks. However, the force they produce is limited compared to hydraulic systems.
Pneumatic cylinders are widely used in industries like:
Automation: They are commonly found in assembly lines, packaging machines, and robotic arms.
Transportation: Pneumatic systems are used in air brakes for buses, trucks, and trains.
Medical: Used in medical equipment for quick, repetitive motions.
Food Processing: Pneumatic cylinders are used in machines that require clean, non-contaminated air for food packaging and processing.
A hydraulic cylinder, on the other hand, operates using hydraulic fluid (usually oil or glycol), which is pumped under high pressure into the cylinder to create motion. Hydraulic cylinders work on the principle of fluid dynamics, where the incompressible nature of hydraulic fluid allows these cylinders to generate significantly higher forces.
These cylinders are more complex and more expensive than pneumatic cylinders, but they are far more powerful, making them suitable for heavy-duty applications. Hydraulic cylinders are often used in industries where high force, precise control, and durability are needed.
Hydraulic cylinders are used in applications requiring high force, such as:
Construction: Used in excavators, cranes, and bulldozers for lifting, digging, and pushing large objects.
Manufacturing: Powering presses, molding machines, and other industrial tools.
Automotive: Used in hydraulic jacks, lifts, and brake systems.
Aerospace: Found in landing gear and cargo door mechanisms on aircraft.
Pneumatic Cylinders: Pneumatic cylinders rely on compressed air or gas. Air is easily available and inexpensive, making pneumatic systems low-cost and simple to operate.
Hydraulic Cylinders: Hydraulic cylinders use pressurized hydraulic fluid, which is incompressible and can generate much higher forces compared to air. Hydraulic systems are more expensive to set up but offer greater power.
Pneumatic Cylinders: Pneumatic cylinders are limited by the pressure of the air used to power them. They typically operate at pressures of up to 100 PSI, producing less force. This makes them suitable for lighter tasks that do not require heavy lifting, such as material handling, packaging, and light automation.
Hydraulic Cylinders: Hydraulic cylinders operate at much higher pressures—typically between 1,500 PSI and 10,000 PSI. The high-pressure fluid in hydraulic systems enables these cylinders to generate significantly higher force. This makes them ideal for applications that require substantial force, such as lifting heavy loads, crushing materials, or applying pressure in industrial settings.
Pneumatic Cylinders: Pneumatic cylinders are known for their quick response time. Due to the compressibility of air, they can accelerate and decelerate very quickly. This makes them perfect for applications that require rapid movements, such as in packaging machines or robotics, where speed is critical.
Hydraulic Cylinders: While hydraulic cylinders are generally slower than pneumatic cylinders, they provide smoother and more controlled motion. The fluid inside hydraulic systems has a slower response due to its higher viscosity, but the tradeoff is more consistent, precise, and powerful movements.
Pneumatic Cylinders: Pneumatic cylinders offer less precision compared to hydraulic cylinders due to the compressibility of air. Variations in air pressure and temperature can cause fluctuations in the cylinder’s performance, making pneumatic systems less predictable in terms of force output.
Hydraulic Cylinders: Hydraulic cylinders offer superior precision and control. Since hydraulic fluid is incompressible, it provides stable and accurate force transmission, making hydraulic systems ideal for tasks that require fine control, such as in aerospace or heavy machinery.
Pneumatic Cylinders: Pneumatic cylinders are relatively easy to maintain and inexpensive to repair. The compressed air they use is readily available, and there is no need to worry about fluid contamination. However, pneumatic systems tend to be less efficient than hydraulic systems, as air compression leads to some energy loss. Additionally, air can escape from the system, leading to potential inefficiencies.
Hydraulic Cylinders: Hydraulic systems require more maintenance due to the complexity of the system and the need to monitor and replace hydraulic fluid regularly. These systems can also suffer from leaks, contamination, and wear of seals and components. However, when maintained properly, hydraulic systems are much more energy-efficient, especially for high-force applications.
Low-force tasks: Pneumatic cylinders are ideal for applications where moderate force is needed, such as pushing light objects or controlling small machines. They are often used for tasks like clamping, ejecting, or lifting small loads.
Speed is essential: Pneumatic cylinders are fast and responsive. They are perfect for applications where speed is a priority, such as in assembly lines or automated material handling systems.
Clean environments: Since pneumatic systems use air, they are cleaner than hydraulic systems, making them perfect for food processing, pharmaceuticals, and industries that need a contamination-free environment.
Cost-effective: Pneumatic cylinders are more affordable, easier to maintain, and require less specialized equipment to operate, making them a great option for light industrial applications or low-cost systems.
Heavy-duty tasks: Hydraulic cylinders excel at generating high force. They are used in construction, mining, and manufacturing applications that require high lifting capabilities, such as excavators, presses, and cranes.
Precision and controlled movement: If your application requires precise control, such as in aerospace or automated manufacturing, hydraulic cylinders are the better option. They offer more stability and accuracy compared to pneumatic systems.
Long-lasting performance: Hydraulic systems are built to endure harsh conditions and continue operating at high efficiency over time. They are the ideal choice for demanding applications that require consistent performance and long-term durability.
Pneumatic cylinders are most commonly used in:
Packaging: For quickly sealing packages and handling products on production lines.
Robotics: Pneumatic cylinders are essential in robotic systems, particularly in light-duty movements that require rapid motion.
Material handling: Pneumatic systems power conveyor belts and automated sorting systems in manufacturing facilities.
Transportation: Used in air brakes, pneumatic lifting jacks, and other transportation applications.
Hydraulic cylinders are critical in:
Construction: Powering the arms of cranes, loaders, and bulldozers to move heavy materials and dig foundations.
Agriculture: Hydraulic cylinders are used in tractors, harvesters, and other farming equipment for lifting, plowing, and planting.
Aerospace: Hydraulic systems are integral in aircraft systems, such as landing gear operation, control surfaces, and cargo doors.
Manufacturing: Hydraulic presses are used for stamping, shaping, and forging heavy materials.
Low cost: Pneumatic cylinders have a lower initial cost and are easier to maintain compared to hydraulic cylinders.
Quick response: Pneumatic cylinders are perfect for fast and rapid movements, making them ideal for automation and high-speed systems.
Simplicity: Pneumatic systems are less complex and easier to design and implement in a variety of applications.
Limited force: Pneumatic cylinders are not suitable for heavy-duty applications that require high lifting force.
Less precision: Due to the compressibility of air, pneumatic systems are less precise in controlling motion and force.
Energy inefficiency: The compressibility of air can lead to losses in energy and efficiency.
High force output: Hydraulic cylinders excel in applications requiring significant force, like lifting large loads or applying high pressure.
Precision: Hydraulic systems offer highly precise control and are essential for applications requiring exact movement.
Energy efficiency: Hydraulic systems are more energy-efficient in heavy-duty applications, as the incompressibility of hydraulic fluid allows for smooth, controlled motion.
High cost: Hydraulic cylinders and systems are more expensive to install and maintain compared to pneumatic systems.
Maintenance complexity: Hydraulic systems require regular maintenance and checks to avoid fluid leaks and contamination.
Potential for contamination: Hydraulic fluid can leak or become contaminated, leading to issues with system performance.
Choosing between pneumatic and hydraulic cylinders comes down to your specific needs. If you need light-duty applications that require quick movements and efficiency, pneumatic cylinders are the best choice. On the other hand, if you require heavy-duty lifting, precise control, and long-lasting performance, hydraulic cylinders are the superior option.
At Blince, we specialize in providing both pneumatic and hydraulic cylinder solutions for all your industrial needs. Whether you’re looking for quick, precise motion or powerful, high-force lifting, we offer a wide range of systems to meet your exact specifications. Contact us today to learn more about how we can help optimize your operations.
A: The main difference lies in the power source. Pneumatic cylinders use compressed air to generate motion, while hydraulic cylinders use pressurized fluid (usually oil or glycol) to create much higher force. Pneumatic cylinders are ideal for lighter tasks, while hydraulic cylinders are suited for heavy-duty applications.
A: You should use a pneumatic cylinder for applications requiring fast, light-duty tasks with moderate force, such as in packaging or robotic arms. Hydraulic cylinders, on the other hand, should be used when you need high force, precision, and steady motion, like in construction equipment or manufacturing.
A: Hydraulic cylinders are generally more energy-efficient for heavy-duty tasks because they use incompressible fluid to maintain force. Pneumatic cylinders, while faster, tend to be less efficient due to air's compressibility and potential energy losses.
A: To maintain hydraulic cylinders, regularly check for fluid contamination, replace hydraulic fluid as needed, and inspect seals for wear. Proper filtration, routine maintenance, and monitoring pressure levels will help keep the system running efficiently and prevent issues like leaks or performance degradation.
