An axial piston motor is a type of hydraulic motor that converts hydraulic energy into mechanical rotational energy. This conversion is achieved through the movement of pistons arranged parallel to the axis of rotation within a cylinder block. These motors are integral components in various hydraulic systems, offering high efficiency and versatility across numerous applications.
An axial piston motor operates by utilizing pistons that move parallel to the axis of rotation. These pistons are housed in a cylinder block and are driven by hydraulic pressure. As hydraulic fluid enters the motor, it pushes the pistons, causing them to move and rotate the cylinder block, which in turn drives the output shaft. This mechanism allows for the conversion of hydraulic energy into mechanical rotational energy.
Cylinder Block: Houses the pistons and rotates about its axis.
Pistons: Move within the cylinder block, driven by hydraulic pressure.
Swashplate or Bent Axis: Determines the angle of the pistons, affecting displacement and performance.
Output Shaft: Transmits the rotational energy to external machinery.
In this design, the pistons are arranged in a circular array and are angled relative to the axis of rotation. The swashplate, a slanted disc, controls the angle of the pistons, thereby regulating the displacement and torque output. This design is commonly used in applications requiring variable displacement and speed control.

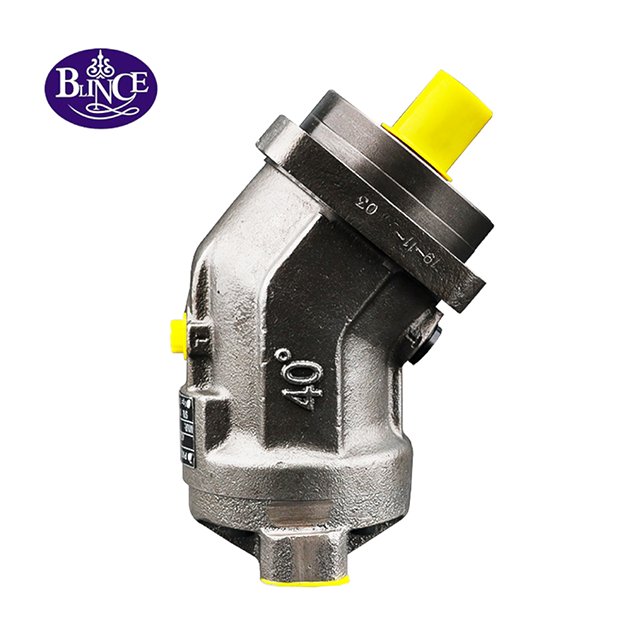

Here, the pistons are arranged at an angle to the axis of rotation. The bent axis design allows for higher displacement and efficiency at higher pressures. It is often used in applications where high torque and compact size are essential.
The operation of an axial piston motor involves several key steps:
Hydraulic Fluid Intake: High-pressure hydraulic fluid enters the motor and flows into the cylinder block.
Piston Movement: The hydraulic pressure pushes the pistons, causing them to move in a reciprocating motion.
Rotational Motion: The movement of the pistons rotates the cylinder block, which is connected to the output shaft.
Energy Conversion: The rotational motion of the output shaft converts hydraulic energy into mechanical energy.
This process allows for precise control of speed and torque, making axial piston motors suitable for a wide range of applications.
High Efficiency: Axial piston motors offer high efficiency, especially at variable speeds and loads.
Compact Design: Their compact size makes them ideal for applications with space constraints.
Variable Displacement: Many axial piston motors feature variable displacement, allowing for adjustable torque and speed.
High Power Density: They provide high power output relative to their size and weight.
Axial piston motors are utilized in various industries due to their versatility and performance:
Construction Equipment: Used in machinery like excavators and cranes for driving hydraulic systems.
Agricultural Machinery: Powering equipment such as harvesters and tractors.
Marine Applications: Employed in winches and steering systems.
Industrial Machinery: Used in conveyors, presses, and other manufacturing equipment.
| Feature | Axial Piston Motor | Radial Piston Motor | Gear Motor | Vane Motor |
|---|---|---|---|---|
| Torque Output | High | Very High | Moderate | Moderate |
| Speed Range | Wide | Narrow | Wide | Wide |
| Efficiency | High | High | Moderate | Moderate |
| Size | Compact | Larger | Compact | Compact |
| Cost | Moderate | High | Low | Low |
Axial piston motors offer a balance between torque, speed, and efficiency, making them suitable for a wide range of applications.
To ensure optimal performance and longevity of an axial piston motor, regular maintenance is essential:
Regular Inspection: Check for signs of wear or damage to components.
Hydraulic Fluid Maintenance: Ensure the hydraulic fluid is clean and at the proper level.
Seal Checks: Inspect seals for leaks and replace them as necessary.
System Monitoring: Monitor system pressure and temperature to prevent overheating and overloading.
Proper maintenance helps in extending the life of the motor and maintaining its efficiency.
An axial piston motor is a vital component in many hydraulic systems, offering high efficiency, compact design, and versatility. Understanding its operation, advantages, and applications can aid in selecting the appropriate motor for specific needs. Regular maintenance ensures optimal performance and longevity, making axial piston motors a reliable choice in various industries.
