Piston motors play a crucial role in powering machinery across multiple industries. These versatile components convert hydraulic pressure into mechanical force, making them essential in everything from construction equipment to heavy-duty machines. In this post, we’ll explore the three main types of piston motors: axial, radial, and bent-axis, and discuss their applications and benefits.
A piston motor is a type of hydraulic motor that converts hydraulic pressure into mechanical power. This allows it to drive machinery and equipment, turning fluid energy into rotational motion. The primary function of piston motors is to generate torque, which is essential for moving heavy loads in many industrial applications.
Hydraulic pressure plays a crucial role in piston motors. When hydraulic fluid is forced into the motor, it pushes the pistons, which then move in a linear motion. This movement is converted into rotational motion, turning the motor’s shaft. The amount of hydraulic pressure determines the force generated by the pistons, directly affecting the motor's output.
Piston motors offer several advantages over other motor types, like gear and vane motors. Here are some key benefits:
Higher Efficiency: Piston motors are more efficient in converting hydraulic energy into mechanical power, especially in high-pressure environments.
Greater Torque: They provide higher torque at lower speeds compared to gear or vane motors, making them ideal for heavy-duty applications.
Better Speed Control: Hydraulic piston motors offer precise speed control and variable displacement, allowing for better performance in dynamic systems.
In contrast, gear motors are simpler but generally less efficient and have lower torque, while vane motors are quieter but can’t handle the same high pressures as piston motors.
Hydraulic piston motors are essential for tasks that require power, precision, and reliability in various sectors like construction, mining, and manufacturing.
Axial piston motors operate with pistons arranged parallel to the motor’s axis. Hydraulic fluid enters the cylinder block, pushing the pistons against a swashplate. This movement is converted into rotational motion, powering the motor. The swashplate's angle can be adjusted, allowing for speed variability and efficient power delivery.
Key features include:
High efficiency: These motors maximize hydraulic energy conversion.
Speed variability: They provide smooth speed control.
Versatility: Axial piston motors handle a wide range of applications.
Axial piston motors are commonly used in:
Construction equipment, such as excavators and bulldozers.
Winches and cranes, where precise control and power are required.
Ship cranes, for smooth operation in marine environments.
Axial piston motors offer several advantages:
Energy efficiency for reduced operational costs.
Higher speeds for faster, more dynamic systems.
Better performance in challenging environments requiring variable speeds.
Radial piston motors have pistons arranged perpendicular to the drive shaft in a radial pattern. As hydraulic fluid enters, it moves the pistons outward, creating torque. This design is ideal for low-speed, high-torque operations, ensuring smooth and consistent power output.
Radial piston motors are often used in:
Heavy-duty applications like drilling rigs and mining equipment.
Winches and hoists where high torque is needed.
Caterpillar drives of large machines such as dragline excavators.
Radial piston motors provide:
High torque at low speeds, making them perfect for heavy lifting.
Smooth output for consistent performance.
Rugged durability for harsh working environments.

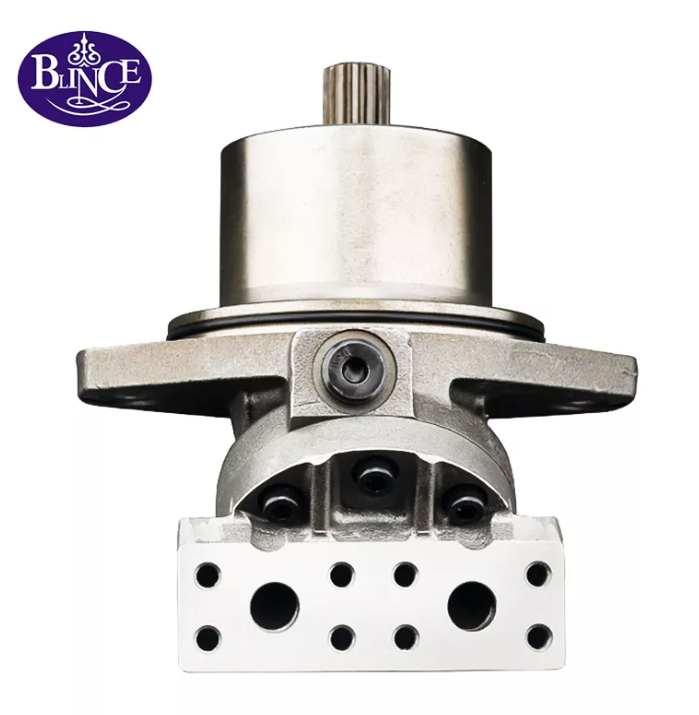

Bent-axis piston motors feature pistons arranged at an angle to the drive shaft, unlike the parallel alignment in axial piston motors. This angle improves efficiency and torque by allowing more effective force transmission. The arrangement also reduces internal friction, optimizing power delivery.
Bent-axis motors are ideal for:
High-pressure systems requiring precise control and reliability.
Heavy-duty machinery, such as large industrial equipment and vehicles.
Marine vessels, where high-efficiency operation is crucial.
Bent-axis piston motors offer:
Greater efficiency than axial motors in high-pressure environments.
Better performance at higher operating pressures.
Compact design, making them ideal for space-limited applications.
Each type of piston motor has its unique design and operational principle, which influences its performance.
Axial Piston Motors have pistons arranged parallel to the motor's axis. Hydraulic fluid pushes the pistons against a swashplate, converting linear motion into rotational motion.
Radial Piston Motors feature pistons arranged perpendicularly around a central shaft. The pistons move outward when hydraulic fluid enters, generating torque.
Bent-Axis Piston Motors have pistons arranged at an angle to the shaft, improving efficiency and torque compared to axial motors. This arrangement minimizes internal friction.
Each motor type shines in different areas:
Axial Piston Motors are highly efficient and offer variable speed control, making them great for dynamic applications that require flexibility in power output.
Radial Piston Motors excel in low-speed, high-torque situations. Their robust design delivers smooth and consistent performance at low speeds.
Bent-Axis Piston Motors provide superior efficiency and torque in high-pressure applications. Their design makes them ideal for heavy-duty machinery that operates under demanding conditions.
When considering cost, there are a few factors to keep in mind:
Axial Piston Motors tend to be more expensive due to their complex design and high efficiency. However, they provide long-term savings through reduced energy consumption.
Radial Piston Motors are usually more affordable than axial motors, but they may require more maintenance due to their higher friction and wear.
Bent-Axis Piston Motors are typically the most expensive due to their high performance and efficiency in heavy-duty tasks. Their maintenance requirements are higher, but their durability can justify the investment.
Each piston motor type is better suited for specific tasks:
Axial Piston Motors are perfect for high-speed applications requiring precise speed control, such as winches and construction equipment.
Radial Piston Motors are ideal for low-speed, high-torque operations like drilling rigs, cranes, and caterpillar drives.
Bent-Axis Piston Motors excel in high-pressure systems, making them the go-to choice for heavy-duty machinery, marine propulsion, and high-performance industrial applications.
Choosing the right piston motor involves understanding several key factors that directly affect motor performance:
Load Requirements: Determine the weight or force the motor needs to handle. This impacts the torque and power needed.
Speed: Consider whether you need a motor that operates at high speeds (axial piston) or one that provides high torque at low speeds (radial piston).
Torque: Depending on the application, you’ll need motors that provide either high torque for heavy lifting (radial piston) or variable torque for adjustable speeds (axial piston).
Pressure: High-pressure environments require piston motors that can handle greater forces, such as bent-axis motors.
Fluid Compatibility: Ensure the motor is compatible with the hydraulic fluid used in your system, whether it’s petroleum-based or synthetic.
Different piston motors are suited for various industries:
Construction: Axial piston motors are often used in heavy equipment like excavators and cranes, where precise control and high efficiency are essential.
Agriculture: Radial piston motors power agricultural machinery like harvesters and irrigation systems, requiring high torque and reliability at low speeds.
Manufacturing: Bent-axis piston motors are used in high-pressure industrial systems such as plastic injection molding and metal presses.
It’s always a good idea to consult with a hydraulic motor expert when selecting a motor. Experts can help you:
Ensure Proper Selection: With so many options, an expert can recommend the best piston motor for your specific application.
Optimize Performance: Professionals can guide you to choose a motor that meets all your performance and efficiency needs.
Prevent Costly Mistakes: Choosing the wrong motor can lead to inefficient performance, higher maintenance costs, and early motor failure.
In this article, we explored the three types of piston motors: axial, radial, and bent-axis. We discussed their design, performance, and ideal applications across industries like construction, agriculture, and manufacturing. When selecting a piston motor, consider factors like load, speed, and pressure requirements. For the best results, consult a hydraulic motor supplier or expert for personalized advice and selection.
A: Axial piston motors are more suitable for high-speed, variable-speed applications. For low-speed, high-torque applications, radial piston motors would be a better choice due to their ability to handle higher torque at lower speeds.
A: Radial piston motors are commonly used in industries such as construction, mining, agriculture, and marine applications, where high torque and durability are needed for heavy-duty operations like drilling rigs, winches, and large machinery.
A: Regular maintenance includes checking and replacing hydraulic fluid, cleaning or replacing filters, inspecting seals for leaks, and ensuring proper lubrication to reduce wear and tear. Following manufacturer guidelines helps maintain efficiency and extend the motor’s life.
