What are the 4 most common types of hydraulic motors?

Have you ever wondered how powerful machines like tractors or excavators move? Hydraulic motors are the hidden force behind their motion. These motors convert fluid pressure into strong, steady rotation, making them essential in construction, farming, and industry.

But not all hydraulic motors are the same. Each type is built for different needs, speeds, and torque. Choosing the wrong one can reduce performance or cause damage. In this post, you’ll learn about the 4 most common types of hydraulic motors. We’ll explain how they work and help you decide which one fits your job best.

What is a Hydraulic Motor and How Does It Work?

Hydraulic motors might seem complex, but they do one simple job: they turn fluid power into motion. When machines like bulldozers or harvesters need to rotate parts or move wheels, these motors step in.

Definition and Basic Function

A hydraulic motor converts the energy from pressurized fluid into mechanical rotation. That means it helps machines move by spinning a shaft using fluid force.

It usually includes four key parts:

• Rotor – the spinning core that moves when fluid enters

• Stator – the outer casing that holds everything in place

• Drive Shaft – carries the spinning motion out to the machine

• Hydraulic Fluid – usually oil, used to push the motor into motion

How Do Hydraulic Motors Operate?

They rely on fluid pressure. As pressurized fluid enters the motor, it pushes against internal parts like vanes, pistons, or gears. This creates rotation.

Here are some important terms you’ll often hear:

• Displacement: How much fluid it takes to spin the motor once

• Torque: The motor's turning power (like how hard it twists)

• Efficiency: How well it turns fluid power into motion without loss

• Slippage: Fluid that leaks inside the motor without doing useful work

Different motors use these ideas in different ways, but all aim to give steady, powerful motion.

Hydraulic Motors vs. Hydraulic Pumps

People mix them up, but they're not the same.

Feature	Hydraulic Motor	Hydraulic Pump
Energy Direction	Fluid → Motion	Motion → Fluid
Common Use	Drives wheels, arms, conveyors	Sends fluid to other components
Flow Direction	Often bidirectional	Mostly one-way flow
Handles Load Directly?	Yes	No

Motors move things; pumps push fluid. A pump might feed fluid into a motor, but the motor does the moving work. Some motors can spin forward and backward—great for machines that need to reverse.

The 4 Most Common Types of Hydraulic Motors

Hydraulic motors come in many styles, but four types dominate the industry. Each one handles pressure, torque, and speed differently. Let’s break them down.

1. Gear Hydraulic Motors

Gear motors are probably the easiest to understand. Inside the motor are two gears—one driven, one idle. As fluid enters, it pushes the gears apart, and that spinning motion drives the shaft.

• How It Works:

  Fluid flows around gear tips inside a sealed housing. As gears mesh again, the fluid exits. This action creates rotation without backflow.

• Key Advantages:

  Simple and low-maintenance

  Handles dirty fluids better than other designs

  Durable, even in rough conditions

  Affordable to manufacture and repair

• Where It’s Used:

  Fans and blowers

  Agricultural machines

  Conveyor belts

• Industrial mixers

2. Vane Hydraulic Motors

This type uses vanes that slide in and out of a spinning rotor. These vanes press against the housing walls, sealing off chambers where fluid enters and exits. That pressure causes rotation.

• How It Works:

  The rotor spins inside an offset bore. As fluid pushes the vanes outward, they drag the rotor with them.

• Key Advantages:

  Quiet and smooth rotation

  Great at low-speed, high-torque tasks

  Compact for limited space setups

  Easy to install vertically or horizontally

• Where It’s Used:

  Robotic arms and automation systems

  Plastic injection molding

  Light-duty conveyor drives

  Precision cutting and shaping tools

3. Piston Hydraulic Motors

These are powerful motors that use pistons to generate motion. There are two main types, and each one fits a different job.

Axial Piston Motors

The pistons move in the same direction as the shaft. Fluid enters a cylinder block, pushing pistons against a swashplate. This angled plate turns as pressure builds, making the motor spin.

Radial Piston Motors

The pistons point out like spokes on a wheel. As fluid fills the chambers, the pistons push outward against a cam ring. That force makes the rotor rotate.

• Key Advantages:

  Extremely high torque (especially radial type)

  Smooth output, even at low speed

  Strong power density in compact design

  Variable displacement options for fine control

• Where It’s Used:

  Cranes and heavy lifting

  Offshore winches

  Drill rigs and boring machines

  Ship propulsion systems

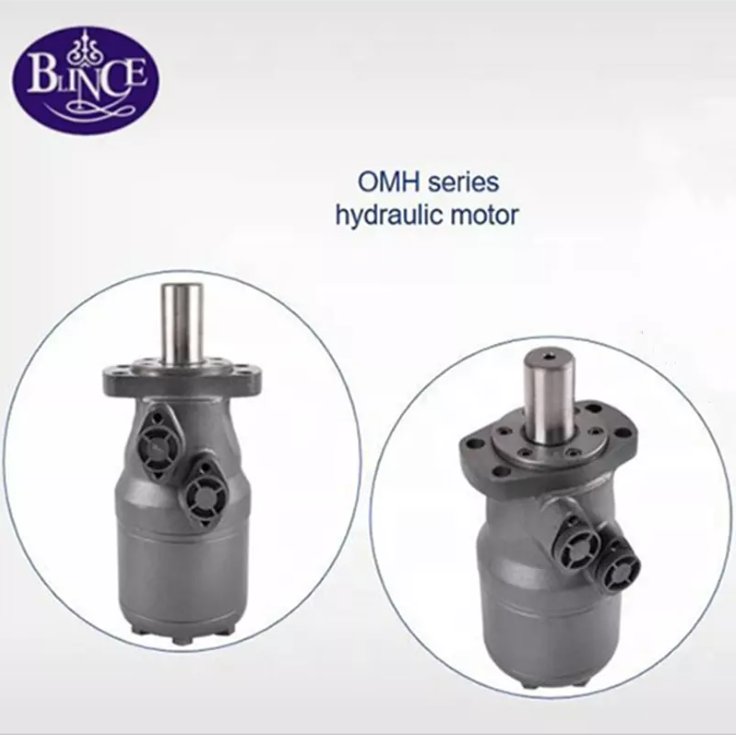

4. Gerotor and Geroller (Orbital) Motors

Also called orbital motors, these are compact but powerful. Inside, an inner gear (the gerotor) spins within a larger outer ring, forming sealed chambers. Fluid pushes the gears, creating smooth, rotating motion.

• How It Works:

  The inner gear rotates slowly around the center, guided by rollers or lobes. The offset design makes it orbit, hence the name.

• Key Advantages:

  Great torque in a small package

  Built-in speed reduction

  Works well at very low speeds

  Efficient and quiet operation

• Where It’s Used:

  Skid-steer loaders

  Forestry cutters and sprayers

  Mobile machinery

• Conveyor rollers in tight spaces

Choosing the Right Hydraulic Motor for Your Application

Not all motors fit every job. Picking the wrong one? It could lead to poor performance or early failure. To get it right, you need to match the motor’s abilities with your machine’s needs.

Key Factors to Consider

Before buying or replacing a hydraulic motor, ask a few questions. What does the job require? How much space is available? Can you maintain it easily?

• Torque and Speed Requirements

Every job demands a different mix of power and speed. If your task involves lifting, crushing, or drilling, high torque matters more than speed. If it’s about spinning or fast cycling, go with high RPM.

• Space Limitations

Some motors—like piston or vane types—take up more room. Others, like gerotor motors, are compact and fit tight spots. Know your layout before picking a size.

• Operating Pressure and Fluid Type

What kind of pressure will the system run on? Most motors have limits. Also, check if the hydraulic fluid is mineral-based, synthetic, or water-based. Certain motor designs handle specific fluids better.

• Maintenance and Serviceability

Some motors are easier to fix and clean. Gear motors, for example, are tough and simple. Vane and piston motors may need more care but give smoother results.

Factor	Why It Matters	What to Look For
Torque/Speed	Matches performance to task	Rated torque, RPM range
Space Constraints	Fits available machine layout	Dimensions, mounting flexibility
Pressure/Fluid Type	Prevents damage and failure	Pressure rating, fluid compatibility
Maintenance	Reduces downtime and repair costs	Simplicity, part availability

LSHT vs. HSLT Motors – Which Should You Use?

Knowing whether to choose a Low-Speed High-Torque (LSHT) or a High-Speed Low-Torque (HSLT) motor can save you time and money.

• When to Choose LSHT

Go LSHT when:

• You need heavy lifting or pushing

• Equipment moves slowly but steadily

• The task involves winches, augers, or conveyors

• Quiet operation and precise control are key

These motors spin slow but have incredible strength.

• When to Choose HSLT

Choose HSLT when:

• The job demands fast spinning parts

• You need less torque but more speed

• You’re running tools, fans, or light industrial gear

• Space and weight need to be minimal

These motors move quickly but don't push as hard.

Type	Best For	Speed	Torque	Example Uses
LSHT	Heavy loads, precision jobs	Low (0.1–1000 RPM)	Very High	Cranes, winches, presses
HSLT	Light loads, fast cycles	High (1000–14,000 RPM)	Low	Fans, tools, conveyors

Common Hydraulic Motor Applications by Industry

Hydraulic motors are everywhere—even if you don’t see them. From building sites to fishing boats, they do the hard work behind the scenes. Let’s explore where and how different industries use them every day.

Construction and Heavy Equipment

In construction, machines must lift, push, and dig. Hydraulic motors power these strong movements with ease.

You’ll find them in:

• Loaders: for bucket lifting and tilting

• Winches: for cable pulling on cranes or trucks

• Excavators: to rotate cabins, drive tracks, or swing arms

Why hydraulic motors work well here:

• High torque at low speeds

• Can handle dirty, rough environments

• Compact enough to fit inside big machines

Agriculture and Farming

Farm tools need steady, reliable movement—especially in tough field conditions. Hydraulic motors keep things running during long harvest days.

Used in:

• Seeders: power wheel drives and seed spreading

• Harvesters: operate conveyor belts and cutters

• Irrigation Systems: spin water sprayers or move booms

Why farmers like them:

• Run smoothly with little noise

• Easy to service in rural areas

• Handle long hours and changing loads

Manufacturing and Industrial Automation

Speed and precision matter in factories. Hydraulic motors are trusted for jobs that need both power and control.

You’ll see them in:

• Robotics: provide joint movement for arms

• Conveyors: push materials down the line

• Presses: apply steady, massive force

• Injection Molding: operate clamps and molds

Why they’re a smart fit:

• High efficiency with low vibration

• Simple integration into automation systems

• Can adjust torque and speed on demand

Marine and Offshore

Out at sea, equipment must work under pressure, often in extreme conditions. Hydraulic motors handle salt, weight, and water.

They power:

• Winches: for anchors, nets, or lifeboats

• Thrusters: for steering in tight docks

• Propulsion Systems: rotate propeller shafts smoothly

Marine benefits:

• Sealed designs resist corrosion

• High reliability in remote environments

• Strong enough to move ships and deep-sea tools

Conclusion

Gear, vane, piston, and gerotor motors each serve unique jobs. Pick one based on torque, speed, and space. Need help deciding? Talk to a hydraulic expert. They’ll guide you to the right fit for your machine. Explore our full motor catalog or contact our team for expert support.

FAQ

Q: What is the difference between a gear motor and a vane motor?

A: Gear motors use meshing gears, are rugged and simple. Vane motors use sliding vanes, offering smoother, quieter rotation.

Q: Can I use a piston motor in mobile machinery?

A: Yes. Axial piston motors are compact and efficient, making them ideal for mobile and high-performance applications.

Q: What type of hydraulic motor offers the most torque?

A: Radial piston motors provide the highest torque, especially at low speeds, and are used in heavy-duty equipment.

Q: Are hydraulic motors maintenance-intensive?

A: Not always. Gear motors are low-maintenance. Piston and vane motors may need more care for top performance.

Q: How are hydraulic motors rated (torque, displacement)?

A: Motors are rated by displacement (cc/rev) and torque (Nm or in-lbs), based on pressure and flow.
