Selecting the right hydraulic cylinder is crucial for ensuring optimal performance, longevity, and safety in various industrial applications. This comprehensive guide will walk you through the essential factors to consider when choosing a hydraulic oil cylinder, helping you make informed decisions tailored to your specific needs.

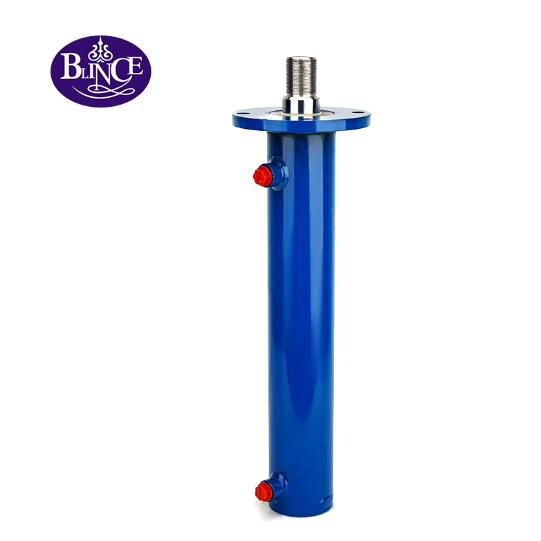

A hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear motion. It consists of a cylindrical barrel, a piston, and a piston rod. When pressurized hydraulic fluid is introduced into the cylinder, it pushes the piston, generating linear force and motion.
Hydraulic cylinders come in various designs, each suited for specific applications:
Single-Acting Cylinders: Use hydraulic fluid to exert force in one direction, typically for pushing tasks.
Double-Acting Cylinders: Utilize hydraulic fluid to exert force in both directions, allowing for both extension and retraction of the piston.
Telescopic Cylinders: Consist of multiple nested stages that extend sequentially, providing a longer stroke from a compact retracted length.
Plunger Cylinders: Also known as ram cylinders, they have a simple design with a piston rod but no piston, used primarily for pushing applications.
Differential Cylinders: Feature pistons with different surface areas on each side, resulting in varying speeds and forces during extension and retraction.
Tie-Rod Cylinders: Constructed with threaded steel rods that hold the end caps to the cylinder barrel, easy to maintain and repair.
Welded Cylinders: Have a compact design with the end caps welded directly to the cylinder barrel, offering a more robust and durable cylinder.
Determine the maximum load the hydraulic cylinder needs to move or lift. This will influence the bore size and pressure rating required.
The stroke length is the distance the piston travels within the cylinder. Ensure the selected cylinder has an adequate stroke length for your application.
Identify the system's operating pressure to select a cylinder that can withstand the required pressure without failure.
Consider the mounting style that best suits your application:
Pivot Mounts: Allow the cylinder to move in an arc, suitable for applications requiring angular motion.
Fixed Mounts: Secure the cylinder in a fixed position, ideal for linear motion applications.
Assess the operating environment, including temperature extremes, exposure to corrosive substances, and potential contamination. Select materials and seals compatible with these conditions.
The material of the hydraulic cylinder affects its strength, weight, and corrosion resistance:
Steel: Offers high strength and durability, suitable for heavy-duty applications.
Stainless Steel: Provides excellent corrosion resistance, ideal for harsh environments.
Aluminum: Lightweight and corrosion-resistant, suitable for applications where weight is a concern.
Seals prevent fluid leakage and protect the internal components of the hydraulic cylinder. Choose seals based on operating temperature, pressure, and fluid compatibility.
Ensure the selected hydraulic oil cylinder is compatible with the hydraulic fluid used in your system. Consider factors such as fluid type, viscosity, and additives.
Select a hydraulic cylinder design that facilitates easy maintenance and component replacement to minimize downtime.
Choosing the right hydraulic oil cylinder involves careful consideration of load requirements, stroke length, operating pressure, mounting options, environmental conditions, material selection, seal compatibility, and maintenance needs. By thoroughly evaluating these factors, you can ensure optimal performance and longevity of your hydraulic system.
