How does a hydraulic orbit motor work?

In today's fast-paced industrial landscape, the demand for compact, efficient, and high-torque motors is ever-increasing. Hydraulic orbit motors, also known as gerotor or geroller motors, have emerged as a solution that meets these demands. By converting hydraulic energy into mechanical rotation, these motors play a crucial role in various sectors, including agriculture, construction, and marine industries. But how exactly do they work? Let's dive into the intricacies of hydraulic orbit motors.

Understanding Hydraulic Orbit Motors

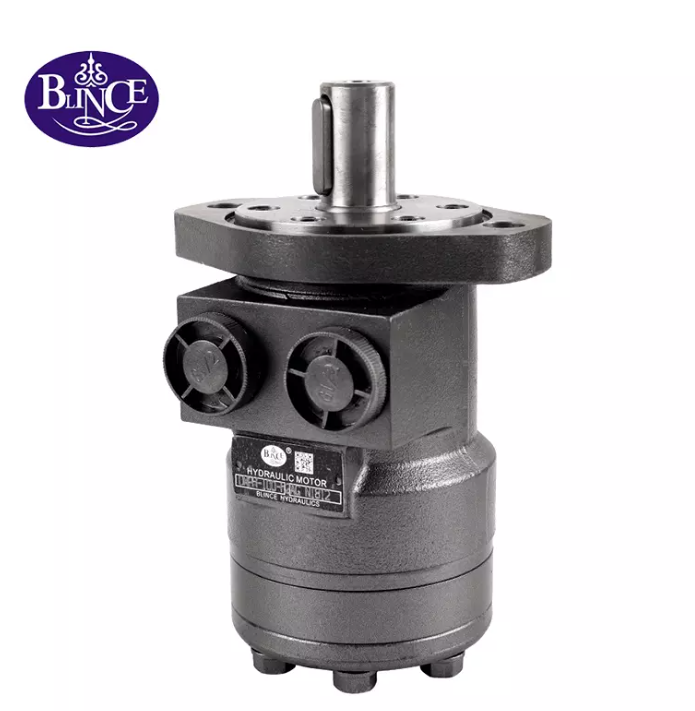

A hydraulic orbit motor is a type of low-speed, high-torque (LSHT) hydraulic motor. It utilizes a unique internal gear design called a gerotor mechanism, in which a rotor with fewer teeth than the surrounding stator "orbits" inside a chamber. This controlled imbalance drives rotation and generates torque.

These motors are often found in wheel drives, conveyors, augers, winches, rotary cutters, and many other applications where compact design, high torque, and reliability are critical.

Key Components

A hydraulic orbit motor comprises several essential components that work in harmony to deliver its characteristic performance:

1. Rotor and Stator: At the heart of the motor is the rotor-stator assembly. The rotor, often star-shaped, rotates within the stator, which has a matching internal tooth form. The rotor typically has one fewer tooth than the stator, creating an imbalance that is crucial for generating rotational movement.

2. Valve Plate: This component regulates the flow of hydraulic fluid into and out of the motor, ensuring efficient operation and controlling the direction of rotation.

3. Shaft and Bearings: The output shaft transfers the rotational energy to the connected machinery. Bearings support the shaft, minimizing friction and wear.

4. Housing: The outer casing encloses and protects the internal components, providing structural integrity and shielding against environmental factors.

How a Hydraulic Orbit Motor Works

Let’s break down the working process step-by-step:

Step 1: Pressurized Fluid Enters

A hydraulic pump delivers pressurized fluid through a valve plate into one side of the motor’s gerotor assembly.

Step 2: Chamber Expansion and Rotation

Because the rotor has one less tooth than the stator, it orbits eccentrically, forming alternating high- and low-pressure chambers. As pressurized fluid fills these chambers, the rotor is pushed in a circular path, causing it to rotate and orbit simultaneously.

Step 3: Torque Transfer

The rotating rotor is mechanically connected to the output shaft. This shaft delivers torque to external equipment such as augers, mixers, or vehicle wheels.

Step 4: Fluid Exit

As fluid exits the low-pressure chambers, it returns to the reservoir. This continuous cycle maintains rotation as long as pressurized fluid is supplied.

Advantages of Hydraulic Orbit Motors

Hydraulic orbit motors offer several advantages over other types of hydraulic motors, making them a preferred choice in many applications:

1. High Efficiency: These motors are known for their high efficiency, converting a significant percentage of hydraulic energy into mechanical energy. This efficiency results in reduced energy consumption and increased overall system performance.

2. Compact Design: Their compact size makes them suitable for applications with limited space, allowing for easy integration into various hydraulic systems.

3. Wide Speed Range: Hydraulic orbit motors can operate at a wide range of speeds, offering flexibility in different applications. This adaptability makes them ideal for equipment requiring varying rotational speeds.

4. High Torque Output: Even at low speeds, these motors can deliver high torque output, making them suitable for applications requiring high starting torque or heavy load conditions.

5. Reliable Performance: Designed to withstand heavy-duty operations and harsh environments, hydraulic orbit motors are known for their durability and long lifespan.

Applications of Hydraulic Orbit Motors

The versatility of hydraulic orbit motors allows them to be used in a wide array of applications across various industries:

1. Agricultural Equipment: In machinery such as harvesters, sprayers, and conveyors, hydraulic orbit motors provide the necessary torque to perform heavy-duty tasks efficiently.

2. Construction Machinery: These motors are used in excavators, trenchers, and compactors, providing the power needed for heavy lifting and digging operations.

3. Material Handling: Hydraulic orbit motors power conveyors, winches, and lifts, ensuring smooth and reliable movement of materials.

4. Marine Equipment: In winches, cranes, and thrusters, the reliability and power of hydraulic orbit motors are critical for maritime operations.

Maintenance and Care

To ensure optimal performance and longevity, regular maintenance of hydraulic orbit motors is essential. Here are some key maintenance practices:

• Regular Inspection: Check for leaks, wear, and damage. Oil leakage at the shaft end is a common issue that can lead to long-term failure if not addressed.

• Fluid Replacement: Change the hydraulic fluid after 50 hours of operation or as per the maintenance schedule. Ensure the fluid is clean and of the correct viscosity.

• Component Check: Inspect valves, actuators, and other components to ensure they function properly. Replace any worn or damaged parts promptly.

• Proper Installation: Ensure all components are correctly connected and the motor is installed according to the manufacturer's guidelines.

Conclusion

Hydraulic orbit motors are indispensable components in modern machinery, offering high efficiency, compact design, and reliable performance across various applications. By understanding their working principles and advantages, industries can harness their full potential to enhance operational efficiency and productivity. Whether in agriculture, construction, or marine applications, hydraulic orbit motors continue to play a vital role in powering the world forward.

For more detailed insights into hydraulic orbit motors and their applications, consider exploring resources from leading manufacturers and industry experts. By staying informed, you can make well-informed decisions that optimize your hydraulic systems and drive success in your operations.

FAQ

Q: What is the typical lifespan of a hydraulic orbit motor?

A: The lifespan of a hydraulic orbit motor depends on factors such as maintenance, fluid cleanliness, and operating conditions. With proper care, it can last several years before requiring significant repairs or replacement.

Q: Can hydraulic orbit motors be used for both low-speed and high-speed applications?

A: Hydraulic orbit motors are primarily designed for low-speed, high-torque applications. While they offer a wide speed range, they are not ideal for high-speed tasks that require rapid rotation.

Q: How do I ensure optimal performance of my hydraulic orbit motor?

A: Regular maintenance, including fluid replacement, component inspection, and proper alignment, is essential. Keep fluid clean and ensure the motor operates within its specified pressure and speed ranges.

Q: Can hydraulic orbit motors be used in mobile equipment?

A: Yes, hydraulic orbit motors are widely used in mobile equipment like skid steers, wheel loaders, and aerial work platforms, where high torque at low speeds is essential.

Q: What are the benefits of using hydraulic orbit motors over electric motors?

A: Hydraulic orbit motors offer advantages such as high torque at low speeds, compact design, and suitability for harsh environments. They do not require complex wiring systems, making them ideal for mobile and industrial equipment.
