Hydraulic cylinders are essential components in numerous industries, providing the force and movement necessary for various applications. From construction equipment to agricultural machinery, these devices play a pivotal role in modern mechanical systems. This article delves into the different types of hydraulic cylinders, their functions, and their significance in various sectors.
A hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear motion. It consists of a cylindrical barrel, a piston, and a piston rod. When pressurized hydraulic fluid is introduced into the cylinder, it pushes the piston, generating linear force and motion.
Hydraulic cylinders come in various designs, each tailored for specific applications. The primary types include:
Single-acting cylinders use hydraulic fluid to exert force in one direction, typically for pushing tasks. They rely on external forces, such as gravity or springs, to return the piston to its original position. These cylinders are commonly used in applications where force is only needed in one direction, such as in lifting equipment or dump trucks.
Double-acting cylinders utilize hydraulic fluid to exert force in both directions, allowing for both extension and retraction of the piston. This design offers greater control and is widely used in various industrial applications, including manufacturing equipment and hydraulic presses.
Telescopic cylinders consist of multiple nested stages that extend sequentially, providing a longer stroke from a compact retracted length. They are ideal for applications with limited space but requiring extended reach, such as in dump trucks and cranes.
Also known as ram cylinders, plunger cylinders have a simple design with a piston rod but no piston. They are used primarily for pushing applications and are capable of handling high loads, making them suitable for heavy equipment like hydraulic presses.
Differential cylinders feature pistons with different surface areas on each side, resulting in varying speeds and forces during extension and retraction. This design allows for precise control and is commonly used in applications requiring specific force requirements.

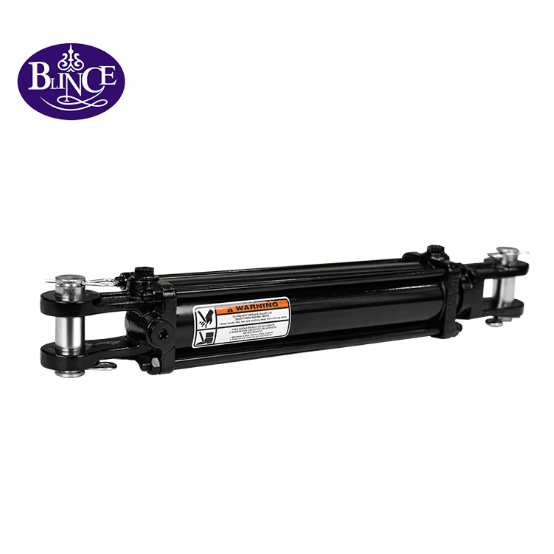

Tie-rod cylinders are constructed with threaded steel rods that hold the end caps to the cylinder barrel. They are easy to maintain and repair, making them a popular choice in industrial and mobile applications. These cylinders are often used in manufacturing machinery and vehicle lifts.
Welded cylinders have a compact design with the end caps welded directly to the cylinder barrel. This construction offers a more robust and durable cylinder, suitable for heavy-duty applications in construction and agricultural machinery.
To better understand the differences between these cylinder types, consider the following comparison:
| Cylinder Type | Direction of Force | Maintenance | Typical Applications |
|---|---|---|---|
| Single-Acting | One-way | Low | Lifting equipment, dump trucks |
| Double-Acting | Two-way | Moderate | Manufacturing equipment, hydraulic presses |
| Telescopic | One or Two-way | Moderate | Dump trucks, cranes |
| Plunger | One-way | Low | Hydraulic presses, compactors |
| Differential | Two-way | High | Precision machinery, robotics |
| Tie-Rod | Two-way | High | Industrial machinery, vehicle lifts |
| Welded | Two-way | Low | Construction equipment, agricultural machinery |
In the realm of agricultural machinery, hydraulic cylinders are indispensable. They provide the necessary force and control for various farming equipment, enhancing efficiency and productivity.
Tractors: Utilize hydraulic cylinders for steering, lifting, and controlling attachments.
Harvesters: Employ cylinders to adjust cutting heights and control unloading mechanisms.
Plows and Seeders: Use hydraulic cylinders to manage depth control and implement positioning.
Sprayers: Rely on cylinders for boom height adjustment and folding mechanisms.
The integration of hydraulic cylinders in agricultural machinery ensures precise control, reduces manual labor, and increases operational efficiency.
Hydraulic cylinders are vital components across various industries, offering solutions for linear motion and force application. Understanding the different types of cylinders and their specific applications allows for informed decisions in equipment design and maintenance. In agricultural machinery, the use of hydraulic cylinders has revolutionized farming practices, leading to increased productivity and efficiency.
As technology advances, the development and application of hydraulic cylinders will continue to evolve, meeting the growing demands of modern industries.
